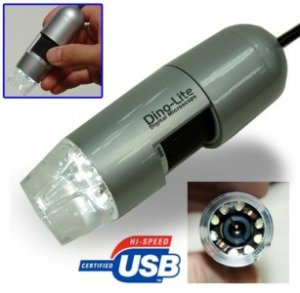

Brand New Portable Digital Microscope & USB Camera AM 311S for Educational and Professional Purposes
Description:
Product Number :
AM-311S DinoLite
Magnification:
10~200X Variable Magnification
Warranty Period:
1 Year
Pixels:
0.3M
Condition:
New
Resolution:
640x480
Packaging:
Retail Box
Data Output:
USB 2.0
Sensor:
1/4" Color CMOS
Regulatory Approval:
CE, FCC, ROHS
Unit Weight:
0.2 lb / 90gm
Unit Weight w/package:
0.62 lbs
Unit Dimension:
4” (H) x 1.26” (D)
Unit Box Dimensions:
6.5”x6.5”x 2.5”
Product Applications:
An amazing, easy to use handheld digital microscope with USB output interface. High resolution magnification at your fingertips!
Detailed examination of any area you choose. Ideal for a wide variety of practical applications in the classroom, workplace and even the home. Can be used for science and engineering work and study, dermatology (skin/scalp) exam, detailed repair, assembly and quality control (i.e. electronics, mechanical, etc), hobbies & collecting (coin, stamp, watch, jewelry, etc.), law enforcement (counterfeit ID, crime lab, etc), entertainment or simply as a reading aid. Just use your imagination! Included with each Dino-Lite digital microscope is a copy of the "DinoCapture" software, enabling you to "capture" either a photograph, video or time-lapsed video with a simple click!
Features/Specifications:
General Features:
Resolution: 640x480 pixels
Interface: USB 2.0
Magnification: 10~200X Variable Magnification
Sensor: 1/4” Color CMOS
Video frame Rate: up to 30 frame-per-second
Illumination: built-in 8 white LEDs
CD Content: DinoCapture application software,
User’s manual
Compatible Windows 2000/XP, Vista and most MAC OS (please verify MAC OS)
Technical Specifications:
Resolution: 640x480 pixels
Interface: USB 2.0Magnification: 10~200X Variable Magnification
Sensor: 1/4” Color CMOS
Video frame Rate: up to 30 frame-per-second
Illumination: built-in 8 white LED’sLED on/off controlled by software
Save File format: BMP, JPG, AVI Compatible
Windows 2000/XP, Vista and most MAC OS (please verify MAC OS)
Microscope Dimensions and Weight:
Body length: 4 inches / 10.2 cm
Body Diameter: 1.26 inches / 3.2cm max.
Cable length: 6 feet / 180 cm
Resolution: 640x480 pixels
Mechanical Layout:
Body with USB cable: 95g +/- 10g
Total package weight: 280g +/- 20g (not including manual)
Magnification: 10x - 200x
Regulatory Approvals: CE, FCC, ROHS
Package includes: DinoLite digital microscope
Application Software CD
Cradle stand
Package Dimension: 6.5”x6.5”x 2.5” / 16.5 cm x 16.5 cm x 6 cm
Options: Mobile stand MS10B Articulating desktop stand MS21WUSB 4 port Hub
Additional Information:
The USB connection eliminates the need for interface cards or expensive software. The software for the collection and processing of photos is included. Software is easy and convenient to load and use. Automatic or manual color balance and control. Automatic or manual brightness control
Product Requirements:
Intel Pentium III 1GHz processor or faster
Windows 2000/XP, Vista
256 MB RAM
CD-ROM drive16-bit color display monitor or higher
Available Hi-speed USB 2.0 Port
